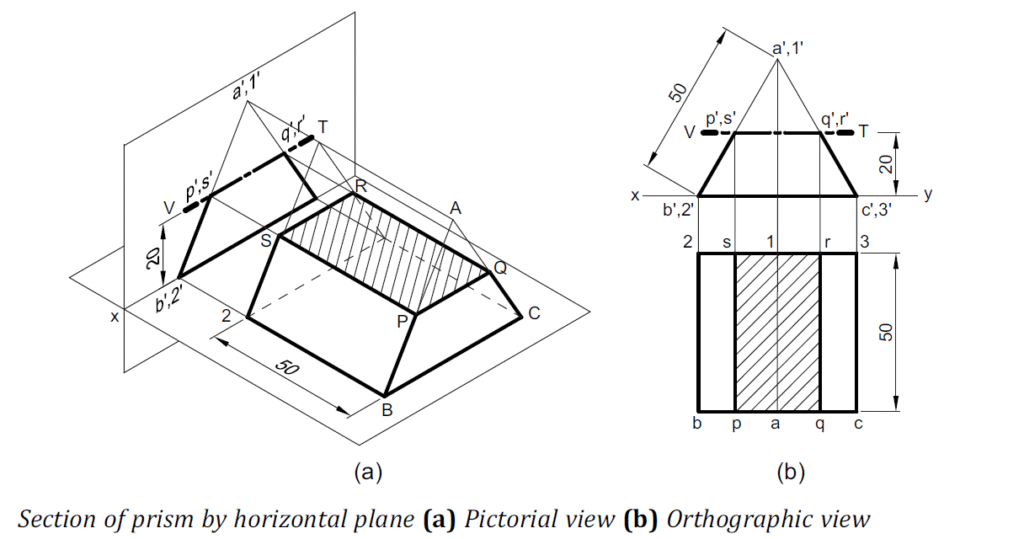

Problem: A triangular prism, base side 50 mm and axis 50 mm is lying on one of its rectangular faces on the H.P. with its axis perpendicular to the V.P. It is cut by a section plane parallel to and 20 mm above H.P. Draw its front view and sectional top view

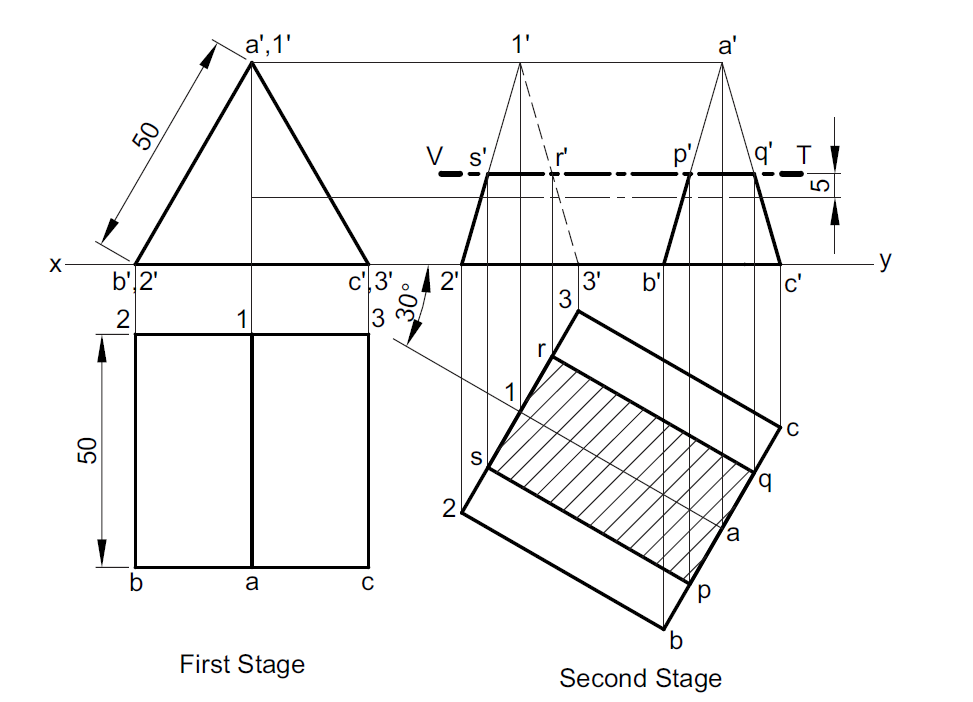

Problem: A triangular prism of base side 50 mm and axis 50 mm lies on one of its rectangular faces on the H.P. with its axis inclined at 30° to the V.P. It is cut by a horizontal section plane at a distance of 5 mm from the axis. Draw its front view and sectional top view.

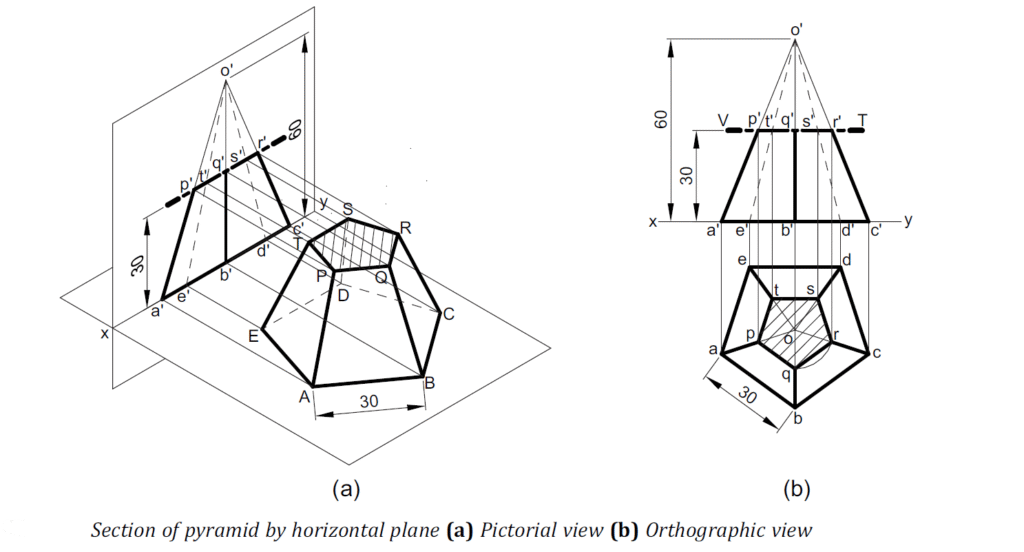

Problem: A pentagonal pyramid of base side 30 mm and axis 60 mm is resting on its base in the H.P. with an edge of the base parallel to the V.P. A horizontal section plane cuts the pyramid bisecting the axis. Draw its front view and sectional top view.

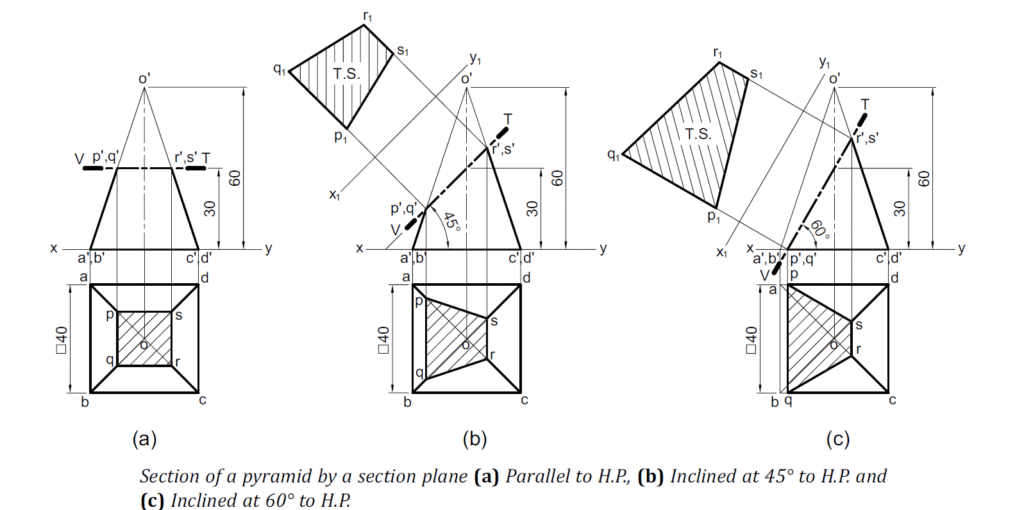

Problem: A square pyramid of base side 40 mm and axis 60 mm is resting on its base on the H.P. with a side of base parallel to the V.P. Draw its sectional views and true shape of the section, if it is cut by a section plane perpendicular to the V.P., bisecting the axis and is (a) parallel to the H.P., (b) inclined at 45° to the H.P. (c) inclined at 60° to the H.P.

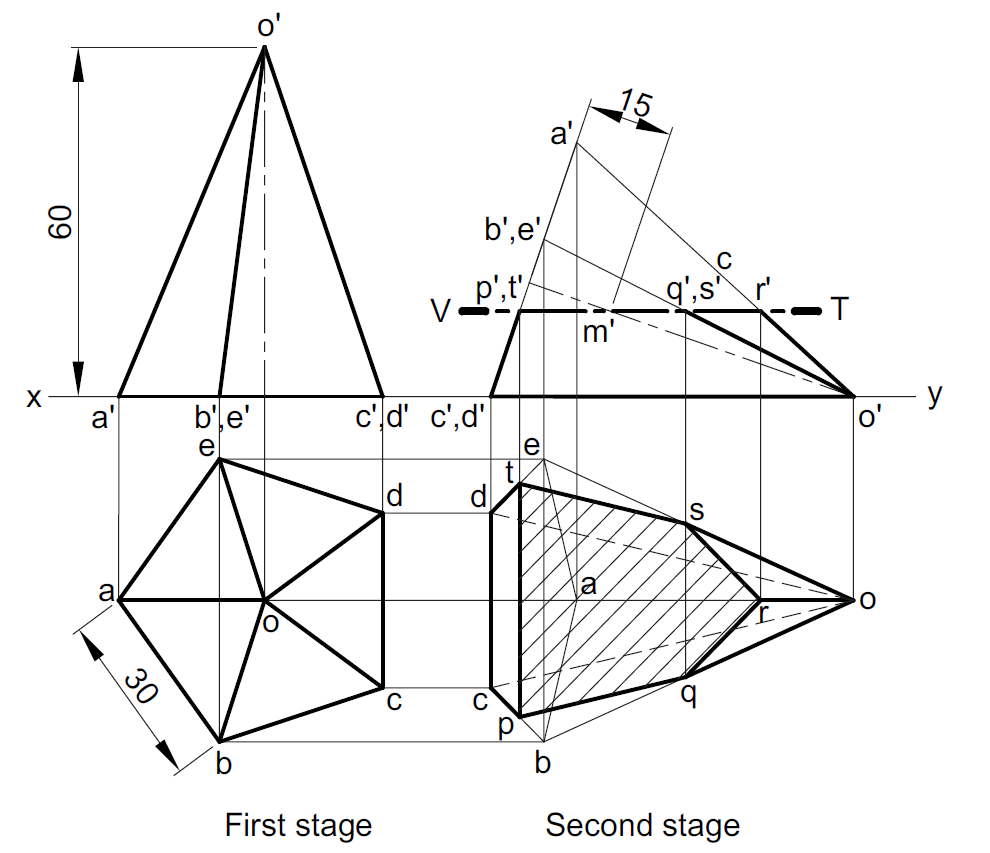

Problem: A pentagonal pyramid of base side 30 mm and axis 60 mm is resting on a triangular face on the H.P. with its axis parallel to the V.P. It is cut by a horizontal section plane passing through the centroid of the pyramid. Draw its projections.

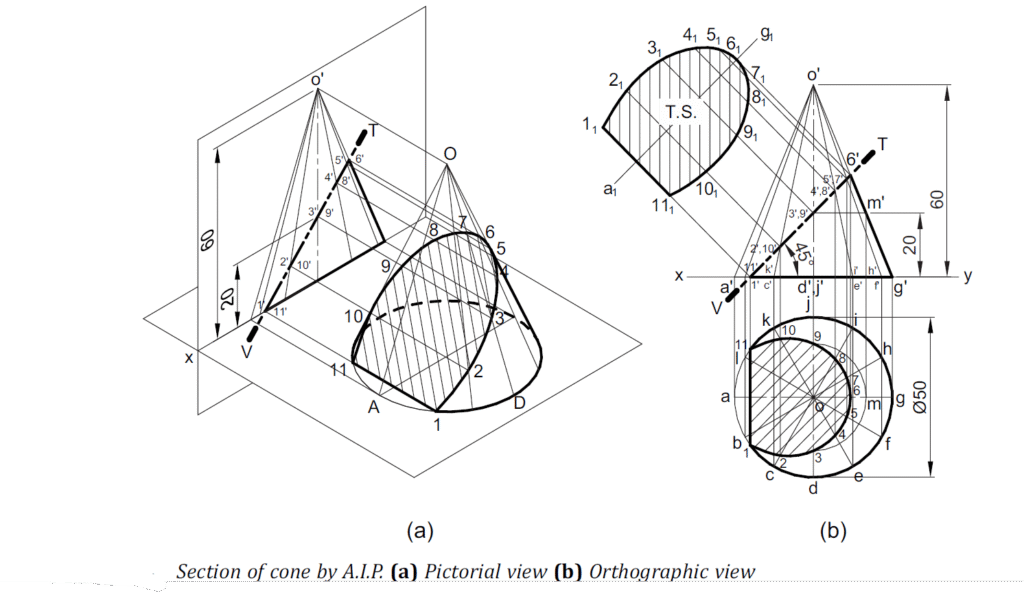

Problem: A cone of base diameter 50 mm and axis 60 mm is resting on its base on the H.P. It is cut by an A.I.P. inclined at 45° to the H.P. and passing through a point on the axis, 20 mm above the base. Draw its sectional top view and obtain true shape of the section.

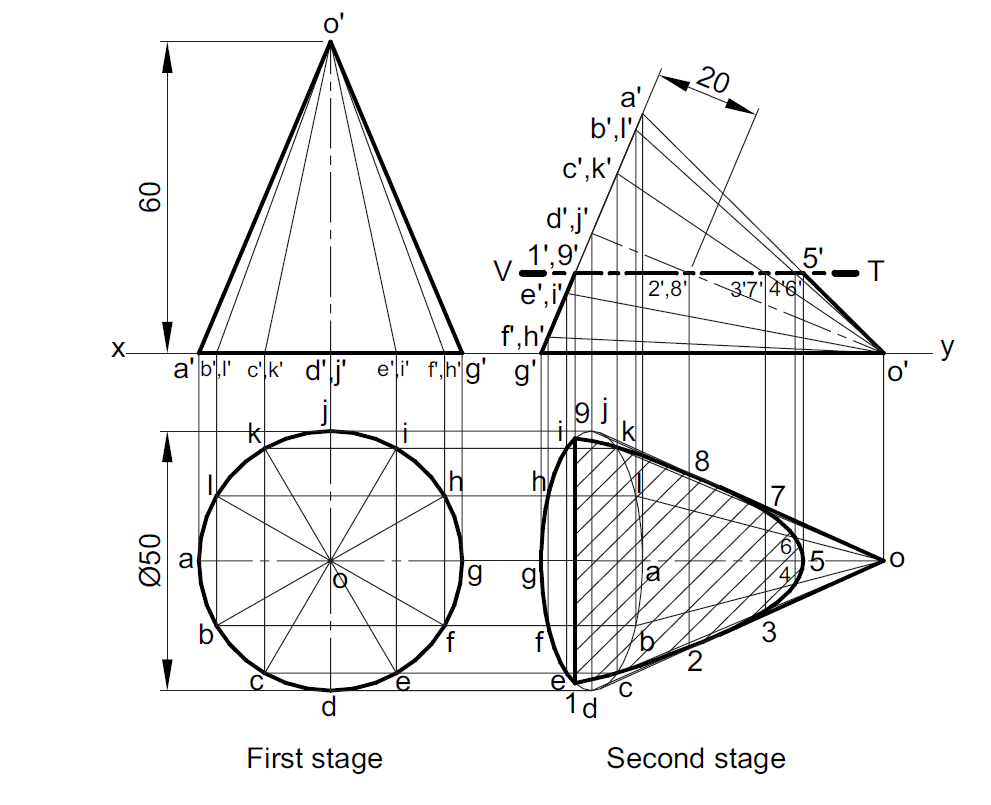

Problem: A cone of base diameter 50 mm and axis 60 mm lies on one of its generators on the H.P. such that its axis is parallel to the V.P. The cone is cut by a horizontal section plane whose V.T. trisects the axis from the base. Draw its sectional views.
Problem: A cone, diameter of base 50 mm and axis 50 mm long is resting on its base on the H.P. It is cut by a section plane perpendicular to the V.P., inclined at 75° to the H.P. and passing through the apex. Draw its front view, sectional top view and true shape of the section
